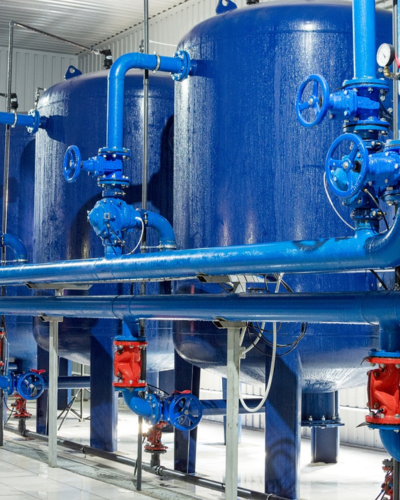

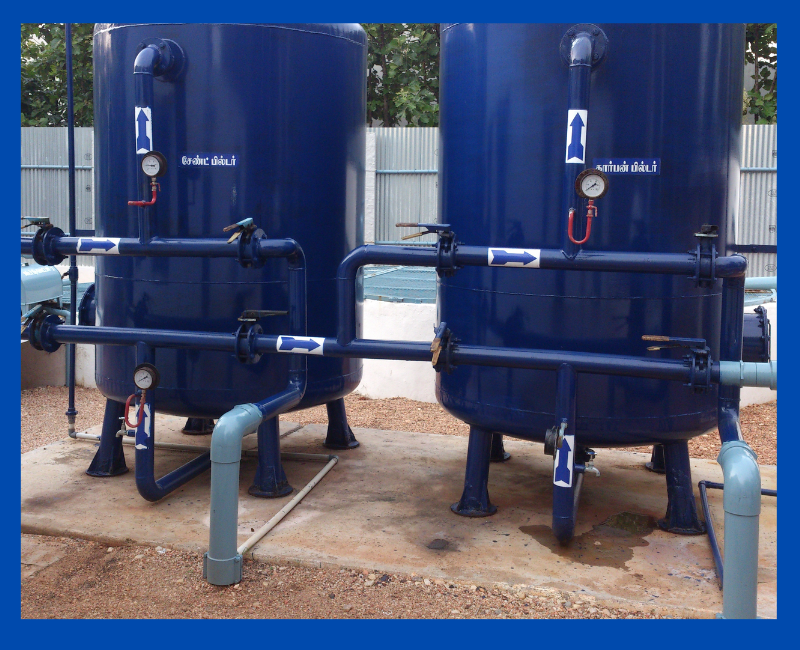

Pressure Sand Filters
A Pressure Sand Filter (PSF) is a workhorse in the world of water treatment. It’s a robust, pressurized vessel designed to remove suspended solids, turbidity, and organic matter from water by passing it through a graded bed of sand. Whether you're treating process water for a factory or pre-treating water for a Reverse Osmosis (RO) system, the PSF is your first line of defense against "cloudy" water.
How It Works: The Filtration Process
The PSF operates on the principle of depth filtration. Water enters the top of the vessel under pressure and percolates through layers of fine silica sand.
- Filtration: As water travels down, particles are trapped in the voids between sand grains.

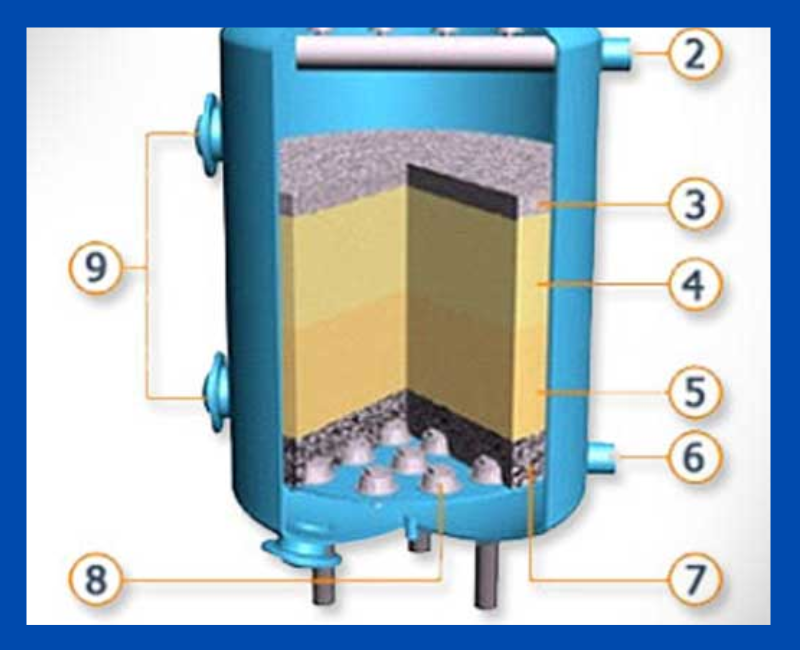

- Graded Media: The bed usually consists of various layers of silex, pebbles, and fine sand to ensure even flow and maximum dirt-holding capacity.
- Backwashing: Once the sand becomes saturated with dirt (indicated by a pressure drop), the flow is reversed. Water is pumped upward to loosen the bed and flush the trapped impurities out to the drain.
Key Features & Specifications
| Feature | Description |
|---|---|

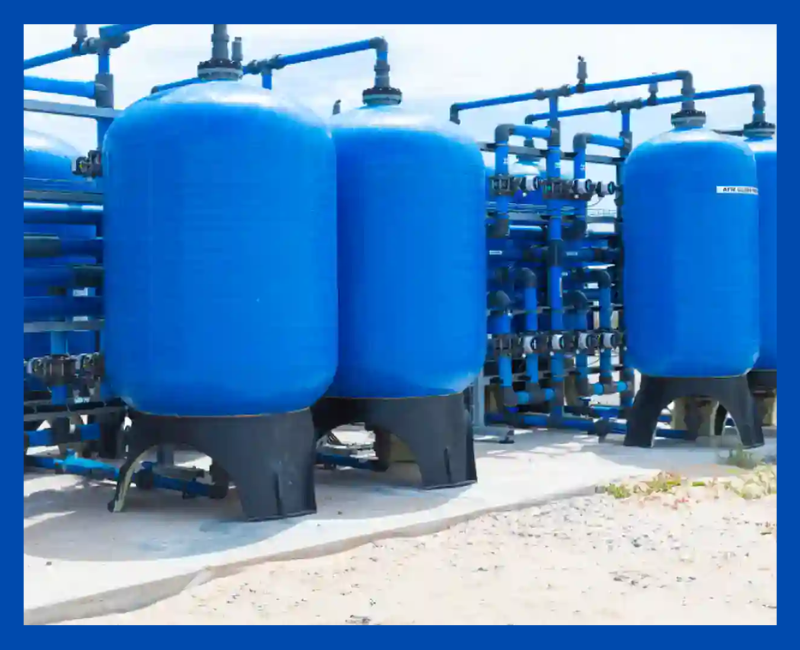

| Vessel Material | Typically MS (Mild Steel), FRP (Fiber Reinforced Plastic), or SS (Stainless Steel). |
| Operating Pressure | Usually designed for 3.5 to 5.0 kg/cm². |

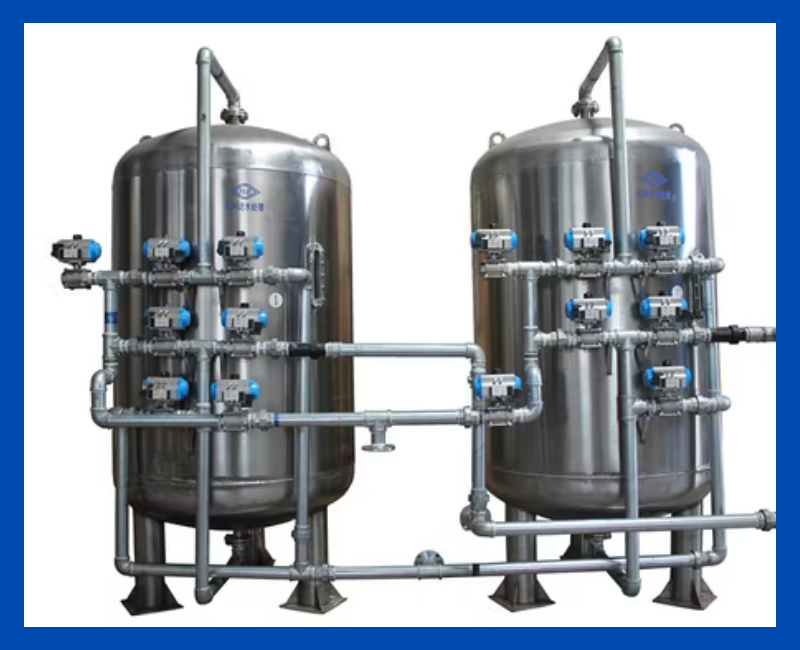

| Valve Options | Manual Multi-Port Valve (MPV) or Butterfly Valve manifold (Auto/Manual). |
| Internal Distribution | Features a top distributor and bottom collector (lateral) system to prevent media loss. |
| Filtration Rating | Efficiently removes particles down to 30–50 microns. |
Why Use a Pressure Sand Filter?
- High Flow Rates: Unlike gravity filters, the pressurized system allows for a much higher flow velocity in a smaller footprint.
- Low Maintenance: Requires no moving parts; maintenance is mostly limited to periodic backwashing.
- Durability: Built to withstand harsh environmental conditions and high-pressure spikes.
- Cost-Effective: Sand is one of the most affordable and long-lasting filtration media available.
Common Applications
- Pre-treatment for RO systems, Nano-filtration, and UV sterilizers.
- Side-stream filtration for cooling towers to prevent scale and sludge.
- Swimming pool water purification.
- Potable water treatment for residential complexes and hotels.
- Industrial wastewater recycling.
